Home /Products /Lidar Systems /Wrangell
Lidar System · Mid altitude · podded

Wrangell

A pod-mounted horizontal system that adds operational flexibility and higher throughput.

Download spec sheet (PDF) →See point clouds
Wrangell Geiger-mode lidar system
5,000–16,000 ft
Flying height
16–20M
Points / second
5 cm
Typical vertical precision
190 km² / hr
Area rate @ 8,000 ft
Specifications

Wrangell at a glance.

Every 3DEO system shares the same Geiger-mode architecture and agile scanning — they differ in altitude band, throughput, and how they mount to the aircraft.

Flying height5,000–16,000 ft
Measurement rate16–20M denoised points/sec
Detector pixels8,000
Angular resolution76 μrad · 19 cm GSD @ 8,000 ft
Typical vertical precision5 cm
Laser power50 W
Weight295 lbs
ConfigurationHorizontal orientation, external pod
MountingFits inside Avcon pod
Wrangell
Example collection

Real data, from real flights.

Color by height above ground, captured at 8,000 ft with an area collection rate of 190 km² / hr.

  • Horizontal orientation, external pod
  • 16–20M denoised points per second
  • Processed end-to-end in Acadia
Explore point clouds →

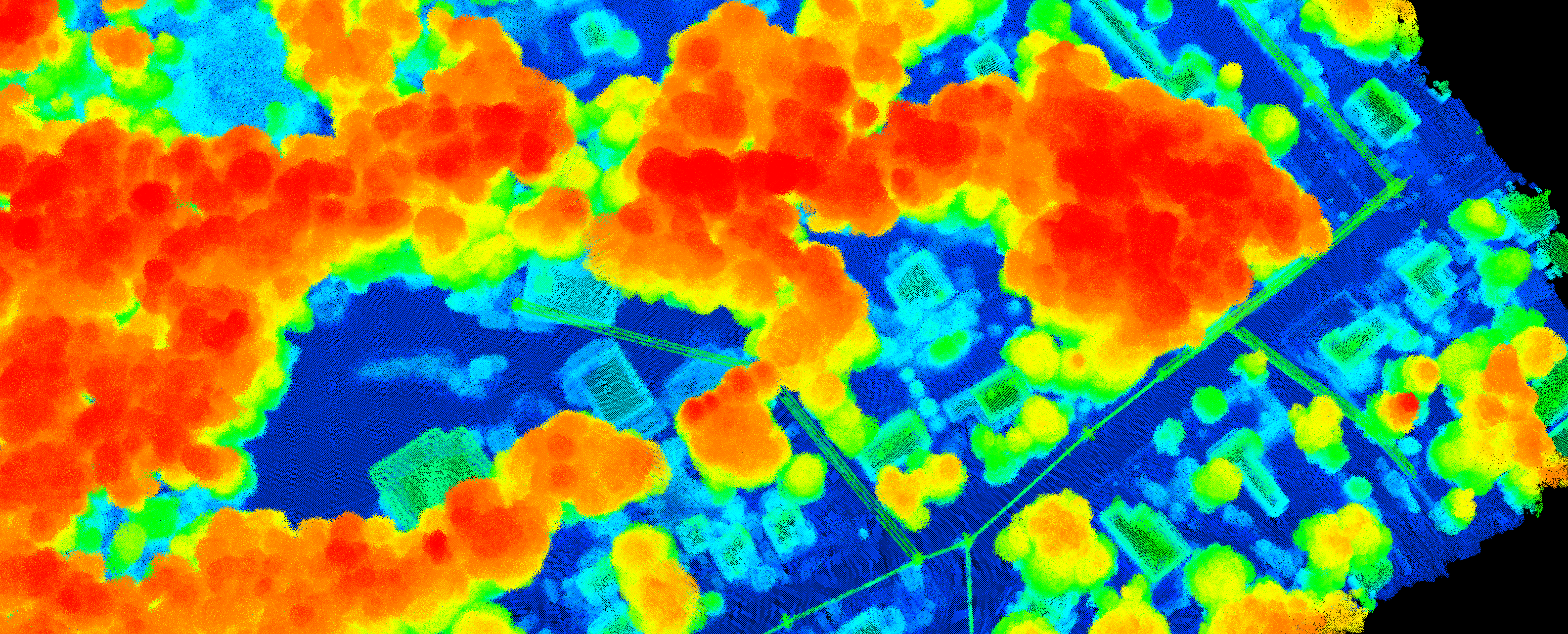

Wrangell example collection
System: Wrangell · Altitude AGL: 6,500 ft · Area rate: 7 km² / hr · Density: 540 ppsm
WRANGELL · Color by height above ground
Works with Acadia

Every Wrangell collection is processed in Acadia, 3DEO’s software suite — turning raw single-photon returns into finished, validated point clouds with reflectivity, height-above-ground, and confidence metadata.

About Acadia →Software & Systems (PDF)
Keep exploring

Compare the lineup

System

Zion

3,000–12,000 ft · 9–12M pts/sec

View Zion →System

Sequoia

20,000–50,000 ft · 20–30M pts/sec

View Sequoia →Compare

All systems

Side-by-side specifications across all three altitude bands.

Compare systems →
Class IV laser warning label

Laser safetyDANGER. Invisible laser radiation. Avoid eye or skin exposure to direct or scattered radiation. Diode pulsed laser at 1064 nm. 60W MAX OUTPUT. 400 ps PULSE WIDTH. CLASS IV LASER.

Tell us your stage. We’ll point to the best next step.

Whatever phase you’re in — consulting, equipment, collection, processing, or answers — there’s a right next move.

Book a callSee point clouds
